Product Details
＋
Specifications
| Presentation | APC Smart-UPS SC is ideal for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages. The Smart-UPS SC features network grade protection, hot swap batteries, and built-in data line protection for worry free uninterruptible power protection for increased availability. Built on the same standards as the award-winning Smart-UPS, Smart-UPS SC provides the basic features and manageability needed to protect entry-level applications |
|---|---|
| Lead time | 通常貨源充足 |
|
Run time for load
WMin-max: 39-390 W
|
5min 27s |
|---|---|
|
|
|
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| 额定功率 [W] | 390 W |
| 额定功率 [VA] | 620 VA |

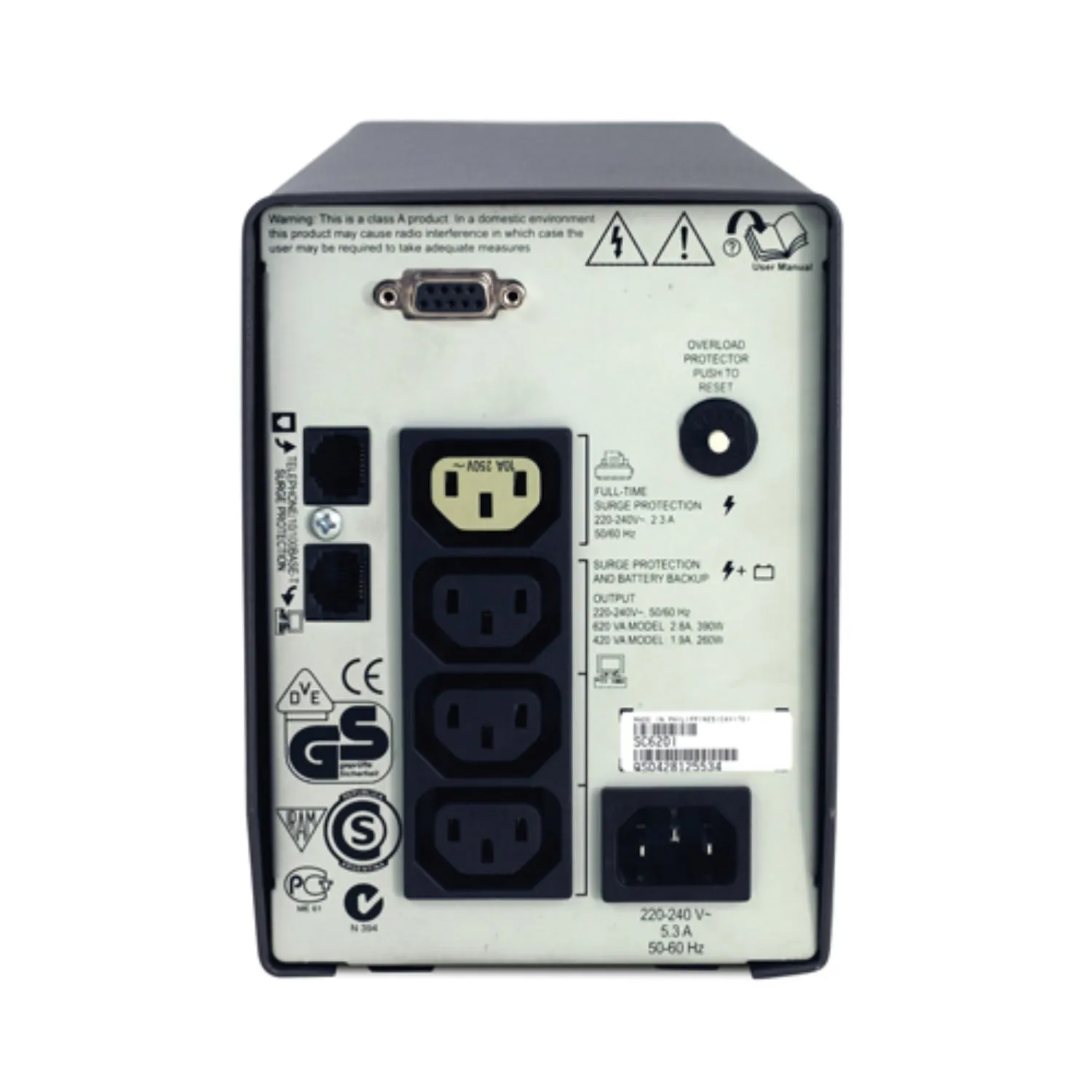

| Input Connection Type | IEC 320 C14 |
| output connection type | 3 IEC 320 C13 1 IEC 320 C13 surge 2 IEC Jumpers |
| 机架单元数 | 0U |
| 电池类型 | 封的電池 |
| 設備提供 | 軟體隨附的 CD Smart UPS RS-232 資料線 使用者手冊 |
| Run Time |
|
|---|---|
| Efficiency |
|
| 电源电压 | 12 V |
| 可延伸運轉時間 | 0 |
| 蓄电池容量 | 12.0 Ah |
| 預安裝的電池 | 0 |
| 空電池槽 | 0 |
| 典型充電時間 | 5 小时 |
| RBC™ 數量 | 1 |
| 电池使用寿命 | 3…5 年 |
| Venturi Pipe |
|
| 電池充電功率（瓦特） | 26 W rated |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| product web sub-family | Entry level |
| Redundant | No |
| 顏色 | 灰色 |
|---|---|
| 高度 | 16.8 cm |
| 寬度 | 11.9 cm |
| 深度 | 37.5 cm |
| 產品重量 | 12.27 kg |
| 安装位置 | 正面 |
| Mounting preference | No preference |
| 安裝類型 | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| 滿載時的效率 | 195...265 V |
|---|---|
| 網絡頻率 | 50/60 Hz /- 3 Hz auto-sensing |
| Maximum configurable power in VA | 620 VA |
|---|---|
| 最大可配置功率 (W) | 390 W |
| 傳送時間 | 典型 2ms |
| 拓樸 | 在線互動式 |
| Wave type | 逐步逼近正弦波 |
| 輸出頻率（與市電同步） | 50/60 Hz /- 3 Hz 與市電同步 |
| 產品証明 | CE CE EAC GOST VDE VCCI |
|---|---|
| 標準 | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| 声响级别 | 45 dBA |
|---|---|
| 热消散 | 70 Btu/h |
| 運行高度 | 0...10000 ft |
| 工作環境溫度 | 0…40 °C |
| 存儲環境溫度 | -15…45 °C |
| 存储高度 | 0.00…15240.00 m |
| 相對濕度 | 0…95 % |
| 相對貯藏濕度 | 0…95 % |
| 空闲槽 | 0 |
|---|---|
| control panel | LED status display with on line : on battery : replace battery and overload indicators |
| alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| 資料線保護 | RJ45 數據機/傳真機/DSL/10-100 Base-T 保護 |
|---|---|
| 突波吸收能力 | 320 J |
| 篩選 | 全天候多柱噪音過濾︰0.7% ieee 突波限制︰零箝拉回應時間︰符合 ul 1449 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 31.8 cm |
| Package 1 Width | 50.8 cm |
| Package 1 Length | 26.2 cm |
| Package 1 Weight | 13.18 kg |
| 保養 | 2 years repair or replace |
|---|
