Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

• Primary Information

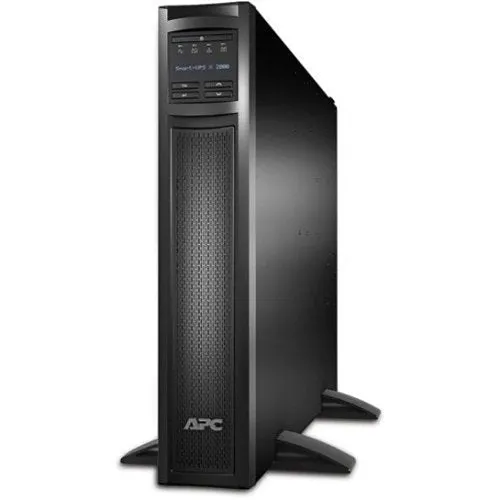

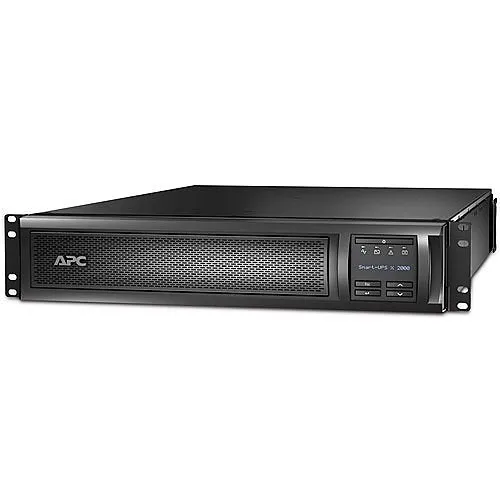

  Product Description:	APC Smart-UPS X 2000 Rack/Tower LCD - UPS - 1800 Watt - 1920 VA - with APC Network Management Card 3 with Environmental Monitoring AP9641
  Device Type:	UPS - rack-mountable / external
  Rack Size:	2U
  Weight:	84.77 lbs
  Input Voltage:	AC 120 V
  Output Voltage:	AC 120 V
  Power Capacity:	1800 Watt / 1920 VA
  Input Connectors:	1 x power NEMA 5-20
  Output connectors:	3 x power NEMA 5-15 ¦ 3 x power NEMA 5-20 ¦ 1 x power NEMA L5-20
  Battery:	Lead acid
  Batteries Qty:	1
  Run Time (Up To):	11 min at full load
  Networking:	Ethernet 10/100, RS-232, USB
  Remote Management Protocol:	SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2
  Color:	Black
  Dimensions (WxDxH):	17 in x 26.3 in x 3.3 in
  Manufacturer Warranty:	3-year warranty
  Bundled with:	APC Network Management Card 3 with Environmental Monitoring AP9641
  Designed For:	P/N: AR2487G, AR3100W, AR3105SP, AR3105W, AR3140G, AR3140W, AR3150W, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A, SMX2000LVUS

• General

  Device Type:	UPS - rack-mountable / external
  Height (Rack Units):	2U
  Color:	Black
  Bundled with:	APC Network Management Card 3 with Environmental Monitoring AP9641

• Power Device

  UPS Technology:	Line interactive
  Input Voltage:	AC 120 V
  Input Voltage Range:	AC 70 - 153 V
  Input Voltage Range (Adjustable):	AC 75 - 154 V
  Frequency Provided:	50/60 Hz
  Frequency Required:	50/60 Hz
  Input Connectors:	1 x power NEMA 5-20
  Power Output Connectors Details:	3 x power NEMA 5-15 ¦ 3 x power NEMA 5-20 ¦ 1 x power NEMA L5-20
  Output Voltage:	AC 120 V 50/60 Hz
  Power Capacity:	1800 Watt / 1920 VA
  Output Waveform:	Sinewave
  Surge Suppression:	Yes
  Surge Energy Rating:	540 Joules

• Battery

  Quantity:	1
  Technology:	Lead acid
  Run Time (Up To):	11 min at full load ¦ 27.6 min at half load
  Recharge Time:	3 hours
  Features:	Maintenance free, sealed, leak-proof

• Networking

  Remote Management Interface:	Ethernet 10/100, RS-232, USB
  Remote Management Protocol:	SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2

• Expansion / Connectivity

  Interfaces:	1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x EPO (emergency power off)
  Expansion Slots:	1 (total) / 0 (free) x SmartSlot

• Miscellaneous

  Cables Included:	Serial cable - external ¦ USB cable - external ¦ Power cable - integrated - 8 ft
  Rack Mounting Kit:	Included
  Equipment Protection Value:	150000 US Dollars
  Features:	Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, overload protection, cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries
  Compliant Standards:	FCC Class A certified, CSA, TUV, BSMI, NOM, UL 1449, UL 1778, VCCI Class A ITE, EN55022 Class A, FCC Part 15, EN 50091-2, RoHS Exemption 7b, REACH

• Software / System Requirements

  Software Included:

  Drivers & Utilities

• Manufacturer Warranty

  Service & Support:

  Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years

• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	104 °F
  Humidity Range Operating:	0 - 95%
  Sound Emission:	55 dBA

• Dimensions & Weight

  Width:	17 in
  Depth:	26.3 in
  Height:	3.3 in
  Weight:	84.77 lbs

• Dimensions & Weight (Shipping)

  Shipping Width:	23.5 in
  Shipping Depth:	34.2 in
  Shipping Height:	9.6 in
  Shipping Weight:	100 lbs
