Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

• Primary Information

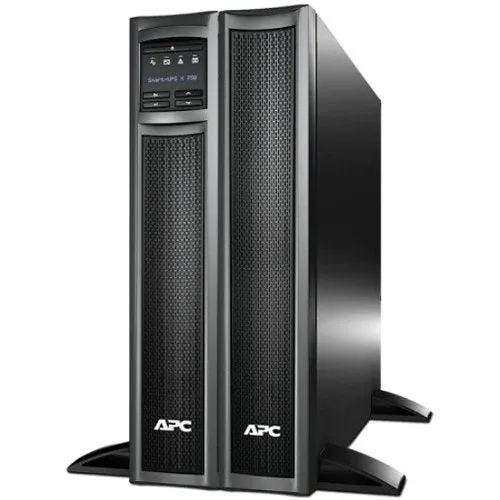

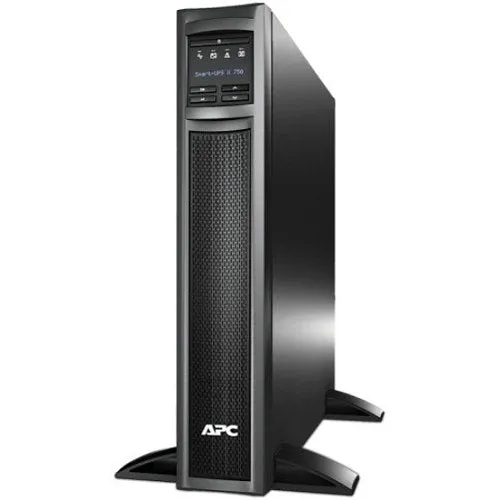

  Product Description:	APC Smart-UPS X SMX750C - UPS - 675 Watt - 750 VA - with APC SmartConnect
  Device Type:	UPS - rack-mountable / external
  Rack Size:	2U
  Weight:	48.61 lbs
  Input Voltage:	AC 120 V
  Output Voltage:	AC 120 V ± 2%
  Power Capacity:	675 Watt / 750 VA
  Input Connectors:	1 x power NEMA 5-15P
  Output connectors:	8 x power NEMA 5-15R
  Battery:	Lead acid expandable
  Run Time (Up To):	12 min at full load
  Networking:	Ethernet, USB, serial
  Remote Management Protocol:	DHCP, IPv4
  Included Accessories:	Tower stand
  Color:	Black
  Dimensions (WxDxH):	3.5 in x 19.3 in x 17 in
  Environmental Standards:	ENERGY STAR
  Manufacturer Warranty:	3-year warranty
  Bundled with:	APC SmartConnect
  Designed For:	P/N: SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC, SRT1000RMXLA, SRT1000RMXLA-NC

• General

  Device Type:	UPS - rack-mountable / external
  Height (Rack Units):	2U
  Color:	Black
  Bundled with:	APC SmartConnect

• Power Device

  UPS Technology:	Line interactive
  Input Voltage:	AC 120 V
  Input Voltage Range:	AC 82 - 144 V
  Input Voltage Range (Adjustable):	AC 75 - 154 V
  Frequency Provided:	50/60 Hz
  Frequency Required:	47 - 63 Hz
  Input Connectors:	1 x power NEMA 5-15P
  Power Output Connectors Details:	8 x power NEMA 5-15R
  Output Voltage:	AC 120 V ± 2% - 50/60 Hz
  Power Capacity:	675 Watt / 750 VA
  Surge Suppression:	Yes
  Surge Energy Rating:	540 Joules
  Circuit Protection:	Circuit breaker
  Efficiency:	98.73% at 100% Green mode (on-line)
  Power Factor (PF):	0.9

• Battery

  Type:	Expandable
  Technology:	Lead acid
  Run Time (Up To):	8 min at full load ¦ 25.6 min at half load ¦ 50.99 min at 200 Watts ¦ 17.24 min at 500 Watts
  Features:	Maintenance free, sealed, leak-proof

• Networking

  Remote Management Interface:	Ethernet, USB, serial
  Remote Management Protocol:	DHCP, IPv4

• Expansion / Connectivity

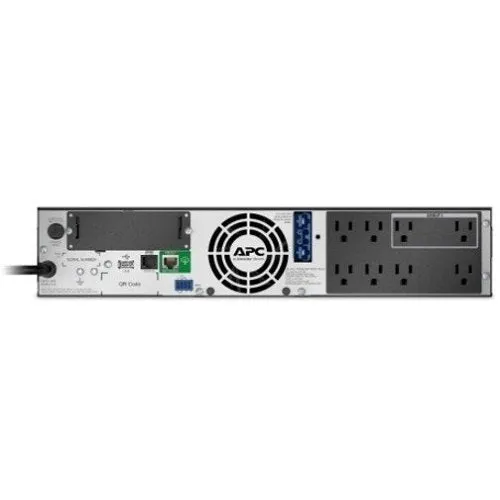

  Interfaces:	1 x management (USB) ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45 ¦ Management (Ethernet)
  Expansion Slots:	1 SmartSlot

• Miscellaneous

  Included Accessories:	Tower stand
  Cables Included:	Power cable - integrated
  Rack Mounting Kit:	Included
  Features:	Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, hot-swappable batteries, Green Function, 1 switched outlet group, EcoStruxure Ready
  Compliant Standards:	cUL, UL 1449, UL 1778, FCC Part 15, RoHS, REACH

• Sustainability Information

  ENERGY STAR:

  Yes

• Manufacturer Warranty

  Service & Support:

  Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years

• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	104 °F
  Humidity Range Operating:	0 - 95% (non-condensing)
  Sound Emission:	45 dBA

• Dimensions & Weight

  Width:	3.5 in
  Depth:	19.3 in
  Height:	17 in
  Weight:	48.61 lbs

• Compatibility Information

  Designed For:

  P/N: SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC, SRT1000RMXLA, SRT1000RMXLA-NC

• Special Feature

  COO:	PHILIPPINES
  TAA compliance:	No

• UNSPSC Code:

  39121011
