Name: [Discontinued] DDS140 PC-Based USB Digital Storage Oscilloscope Signal Generator
SKU: 1859459

Product Details ＋

If you're looking for A USB Oscilloscope that supports win10, click:

DESCRIPTION

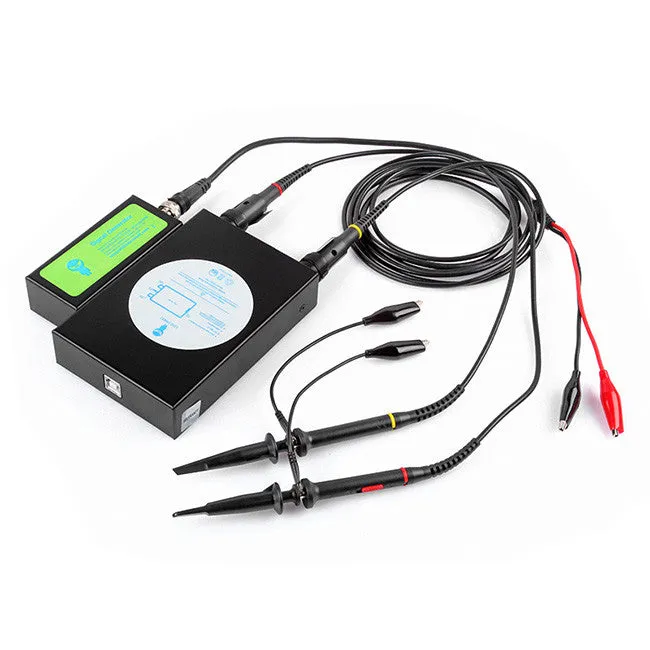

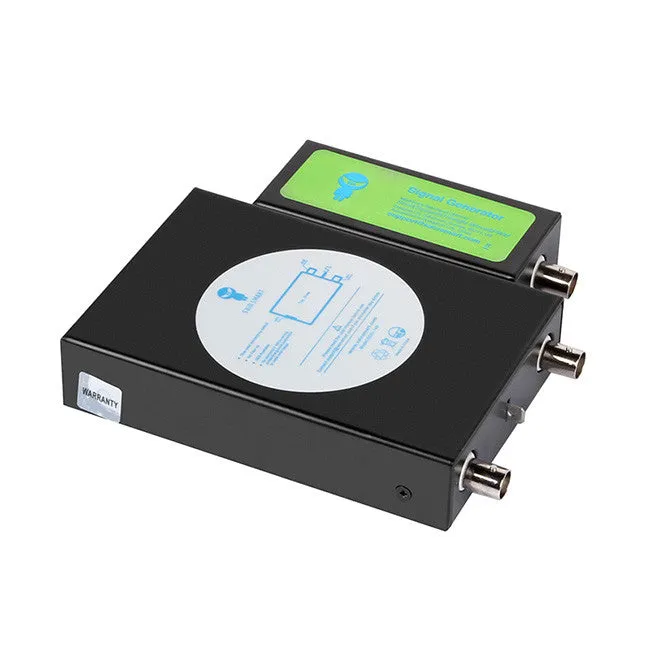

DDS-140 is at the top of its class. It can be extended to achieve oscilloscope, signal generator and logic analyzer triple main functions by inserting different sub-modules. The highlighting advantages are the optional modular structure and high performance price ratio. When you do not want to spend a high price to buy a traditional oscilloscope, a signal generator and a logic analyzer .This product will be a good choice.

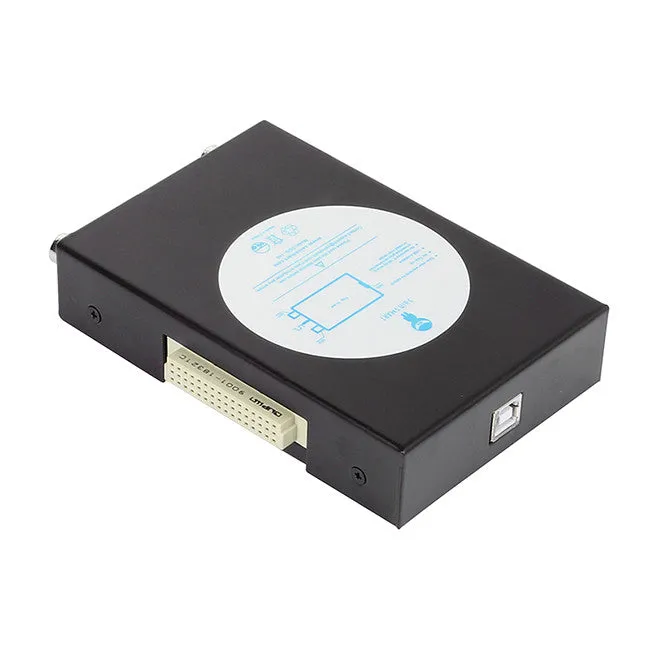

DDS-140 body take operation of traditional oscilloscope operation and part function of display transfer drawing into the computer by the software to achieve. As long as the DDS-140 device via USB cable into your compute, it will form a complete oscilloscope test system after running the software.

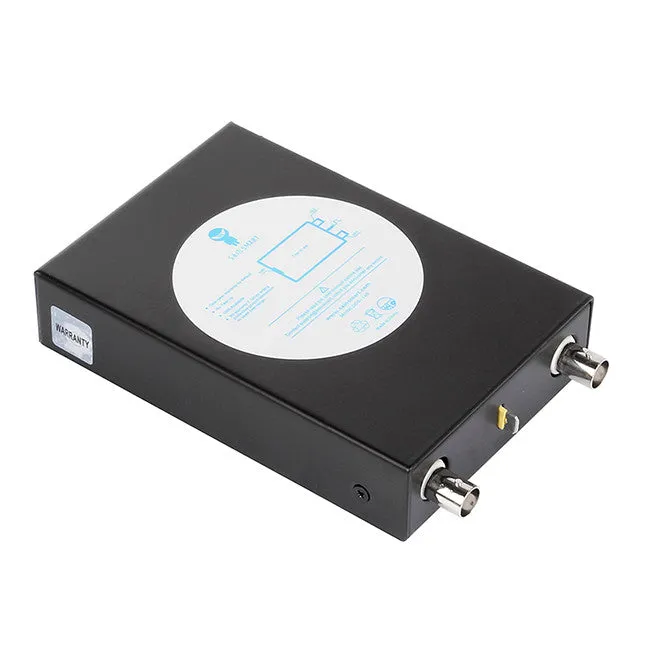

Hardware Features:

Optional signal generator function
Optional logic analyzer function
Real-time sampling rate up to 200M hz
Recommended input: 1 ~ 30M hz
10kV ESD protection
10 times over voltage protection
DC-coupled and AC-coupled input
Computer USB supply power directly
1K HZ square wave signal output

Software features:

Support XP~Win8 series of operating system
Waveform recording and continuous playback as well as specified frame playback functions by frame-by-frame
Input channel arithmetic and FFT analysis
Anti-aliasing features of waveform drawing to reduce rendering errors further
Memory unction of user personalization settings
The rapid completion of the mouse to control the trigger function settings

Application:

Site engineer travel to debug
AE engineers diagnose equipment and solve the problem for customer on-site
Electronics Engineer develop tools, save money and desktop space
The ideal partner of electronic enthusiasts for their amateur making
Fault diagnosis equipment for repair personnel Demonstration Teaching Laboratory aids of colleges and Universities
Automatic test equipment for production

Typical Characteristics:

Model	Hantek6082BE	Hantek6052BE	Hantek6022BE
Price	$250	$190	$72	$100	$115
Channel	2 Channels
Bandwidth	80MHz	50MHz	20MHz	20MHz	40MHz
Input Impedance	1MΩ 25pF
Max. Sample rate	250MSa/s	150MSa/s	48MSa/s	50MSa/s	200MSa/s
Coupling	AC/DC/GND
Vertical resolution	8Bit	8Bit	8Bit
Gain range	10mV-5V, 9Steps	±5V,±50V,±500V,	±5V,±50V,±500V,
DC accuracy	±3%	±3%	±3%
Timebase range	4ns-1h, 38 Steps
Vertical adjustable	Yes
Input protection	Diode clamping
X-Y	Yes
EXT. input	Yes	No	No	No
Trigger Mode	Auto, Normal and Single
Trigger Slope	/-
Trigger level adjustable	Yes
Trigger Type	Rising edge, falling edge
Trigger Source	CH1, CH2, EXT	CH1, CH2
Pre/Post trigger	0-100%
Buffer size	10K-64KB/Channel	1M
Sampling selection	Yes
Waveform Display	port/line, waveform average, persistence, intensity
Network	Open/Close
Vertical mode	CH1, CH2, Dual, ADD
Cursor measurement	Yes
Math	FFT, addition, subtraction, multiplication, division.
Cursor	Frequency, Voltage

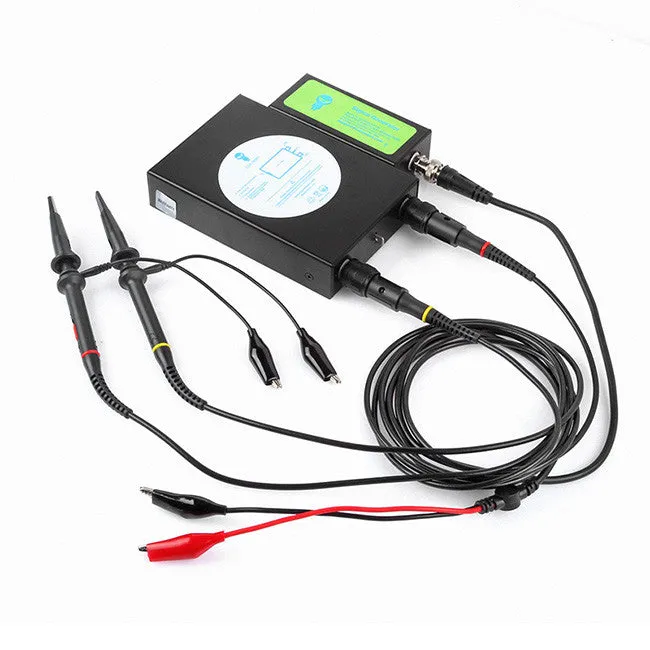

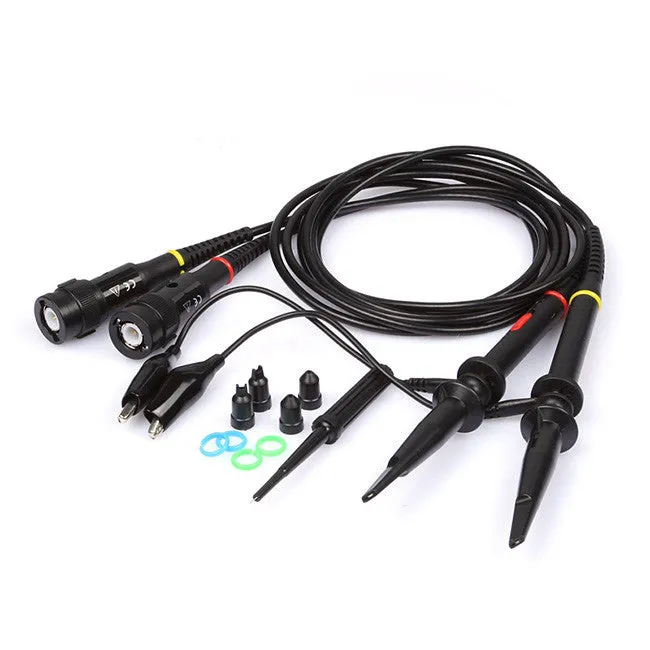

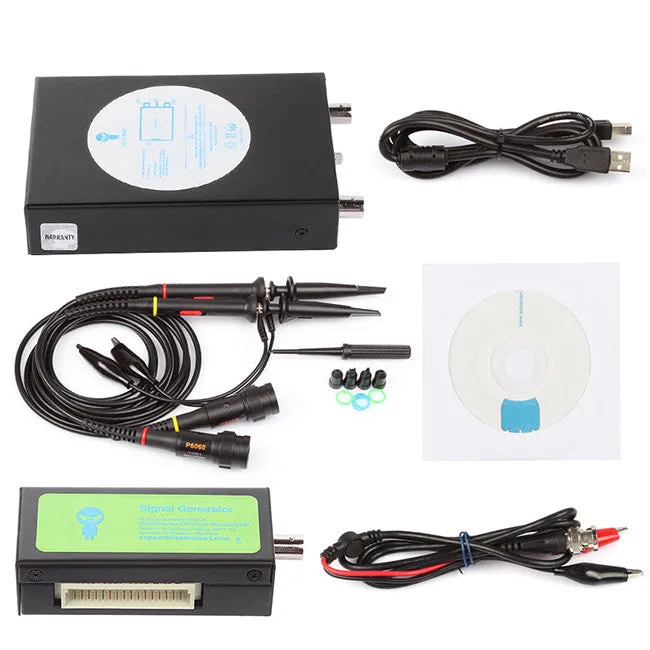

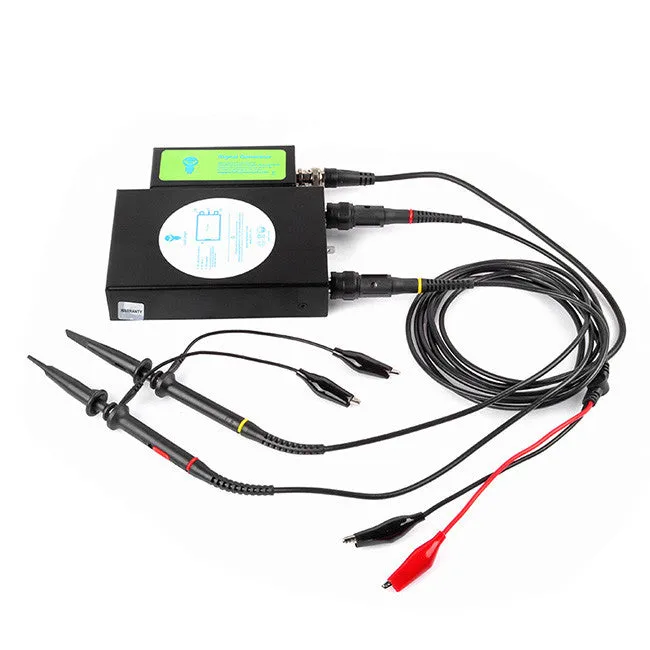

Accessories	S/W CD, probes, manual, USB cord

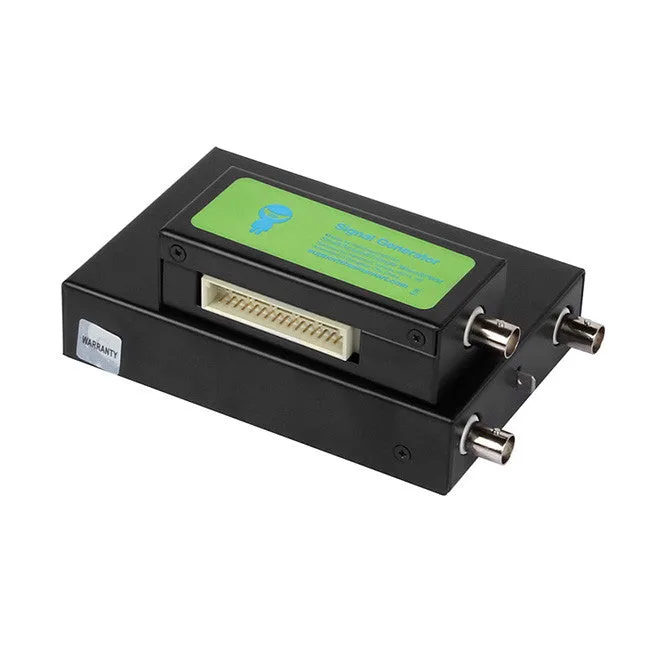

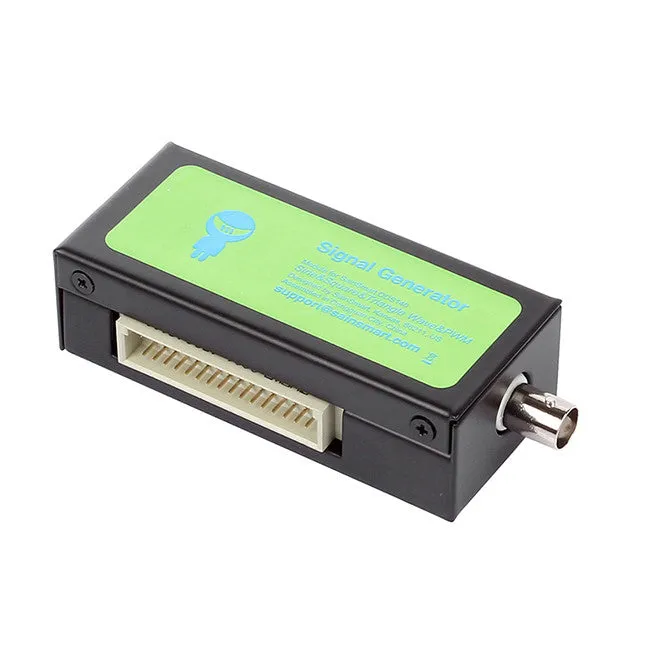

Signal Generator:

Signal generator module provides one BNC connector Signal output:

Entry	Detail
Waveform Type	Square wave, sine wave, triangle wave, PWM
Output amplitude	Software adjustable output range-4V ~ 4 V
Output frequency	1 ~ 20M HZ (sine wave) continuously adjustable, PWM output frequency limit 20K HZ
Output bandwidth	5M HZ (Sine wave)
Output Bias	Software adjustable
Duty	Software adjustable PWM output duty cycle, 10% of the ladder
Size	10 cm X4 cm X2.5 cm
