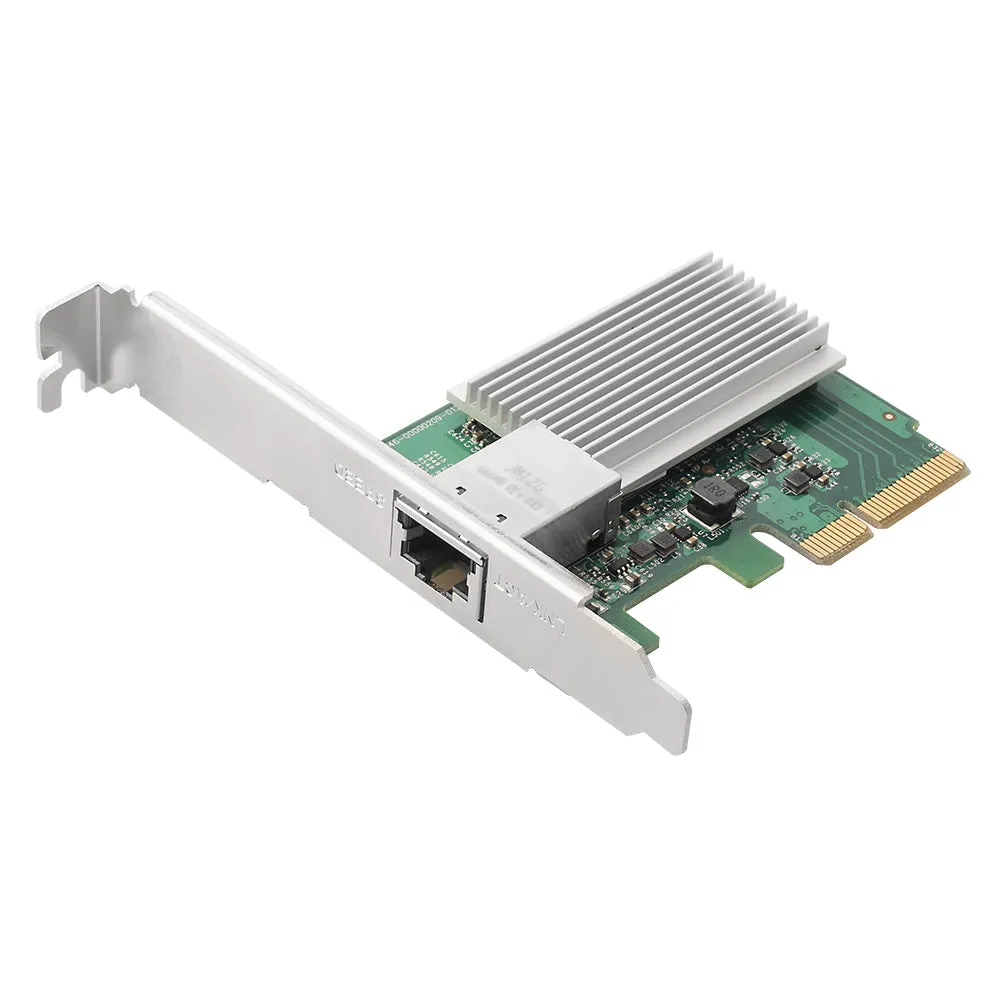

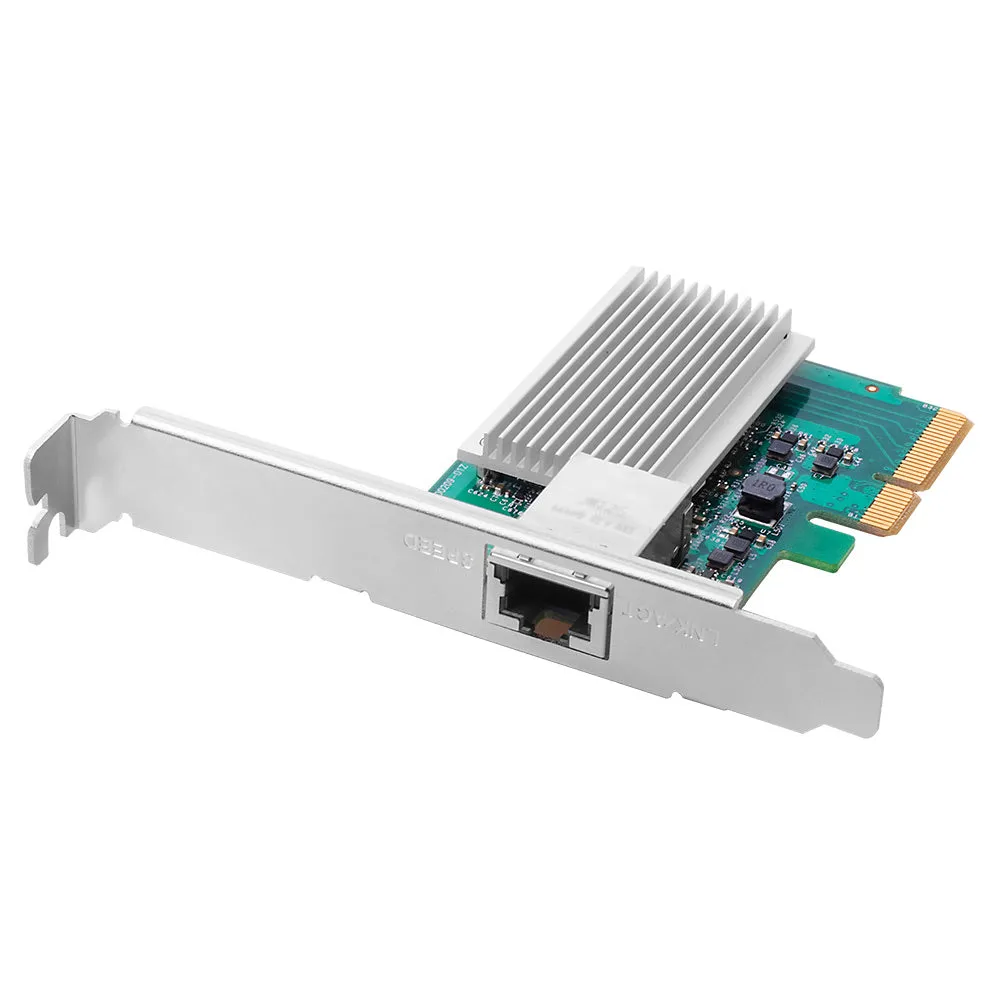

The EN-9320TX-E is a 10 Gigabit Ethernet PCI Express Server Adapter designed for the high-speed PCI Express bus architecture. This meets the high-performance requirements such as large file transfers and HD video editing, which utilizes high-performance shared storage system to have improved server efficiency and network performance. Connecting the EN-9320TX-E with the RJ45 cable, your system instantly upgraded to superior performance in fast and reliable10Gbps high-speed.

The EN-9320TX-E is an ideal selection to upgrade your server or workstation as the high-performance, low-power consumption and better-quality solution to complement the requirements of low latency, high bandwidth, high-throughput and cost-effective Gigabit Ethernet Adapter.

10GbE Superior Network Speed

Equipped with a 10 Gigabit RJ45 interface, the EN-9320TX-E can provide 10 times better performance than existing Gigabit transmissions.​

Advanced Features & Security
The EN-9320TX-E features 802.1Q Virtual LAN (VLAN) tagging for Ethernet frames providing network management with a flexible and more secure environment. Moreover the card supports advanced features for best performance such as 16K Jumbo Frame and IEEE 802.3x Flow Control.​

Cost Effective and Easy Migration 10G Adapter
The Cost-effective solution of 10Gbps high-speed adapter on 10 Gigabit network connection – offering full compatibility to 10/5/2.5/1Gbps and 100Mbps networking standards and existing copper network.

Key Features

• PCI Express rev.2.0 specification x 4 interface
• 10 Gigabit throughput with 100-meter UTP cable
• Backward compatible with 1000Bast-T, 100 Base-TX network
• 16K jumbo frames
• IP, TCP, UDP checksum offloading
• Reduced CPU utilization and improved though
• Supports IEEE 802.1Q VLAN ID tagging and IEEE 802.1q QoS

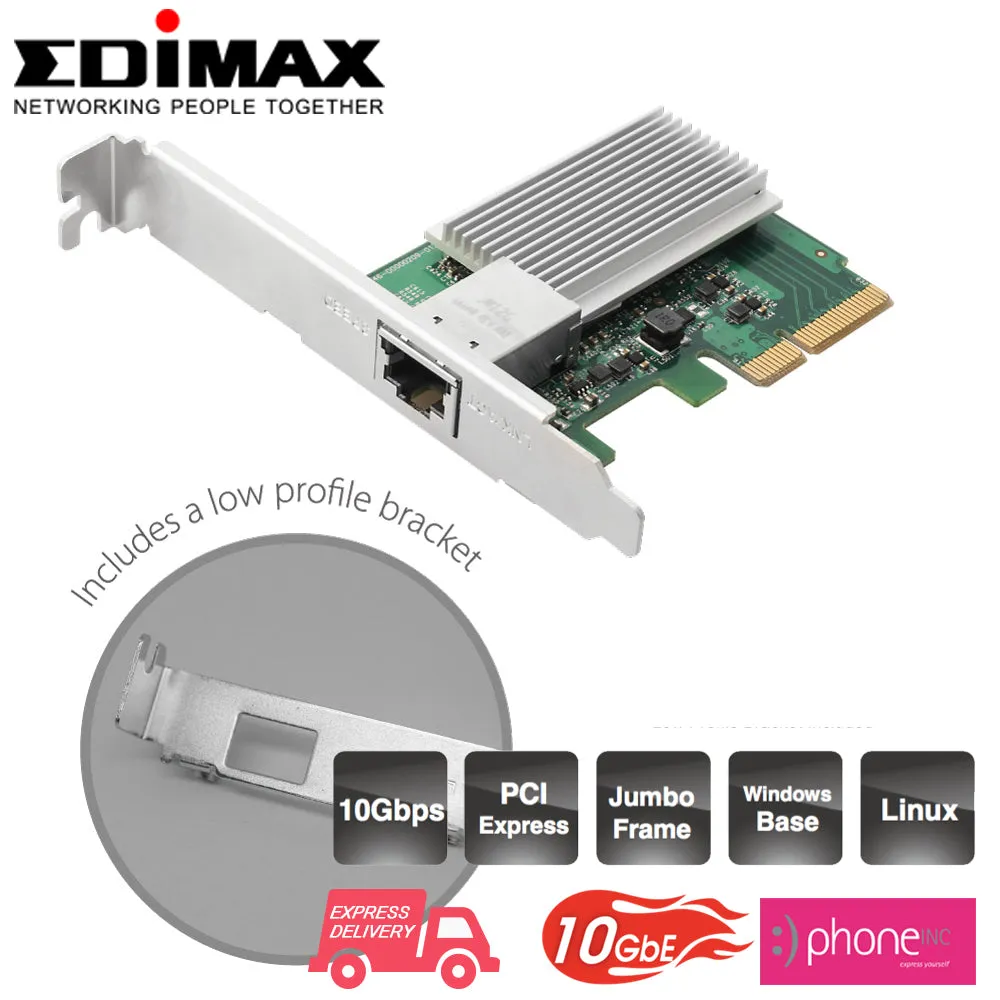

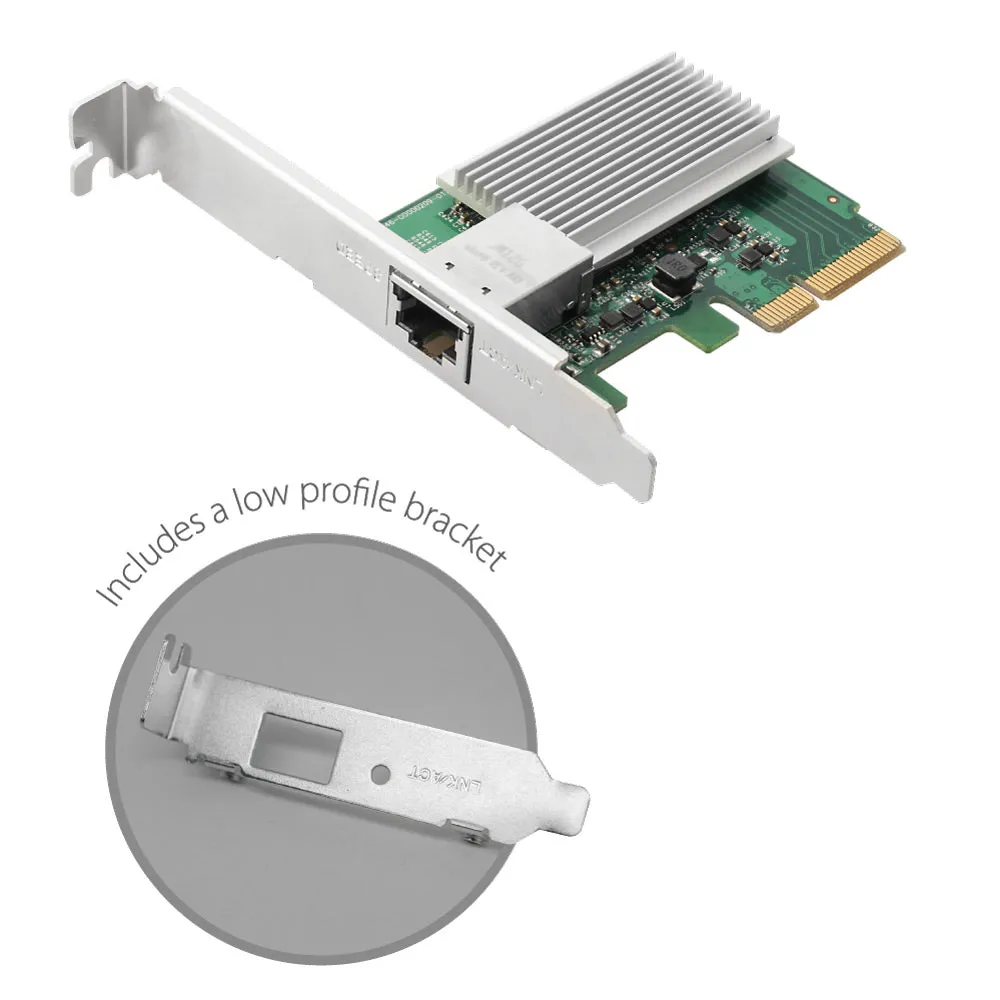

• Low profile bracket included

Application Diagrams

Other 10GbE Products

Web Smart Switch XGS-5008

SFP PCI Express Adapter EN-9320SFP

SFP Module MG-10G Series

SPECS
Hardware

Attachment interface

• PCI Express Rev. 2.0 Specification x4 Interface

Media Interface

• RJ-45 Connector

Jumbo Frame

• 16K Bytes

LED Indicators

• LNK / ACT Per Port

Typical Power Consumption

• 4 Walls

Software
OS Compatibility

• Windows Server 2012 R2, Server 2012, Server 2008R2, Server 2016
• Windows 10, Windows 8.1, Windows 7 (32/64-bit)
• Linux 4.x, 3.x, Linux 2.6.x (32/64-bit)
• Mac OS X 10.10.X (Yosemite)
• Mac OS X 10.11.x (EL Captain)
• MAC OS Sierra (10.12.x)
• VMware ESXi 6.0, 5.5, 5.1
• Microsoft Hyper-V
• Linux KVM
• Oracle VirtualBox ​

Environment
Temperature

• Operating: 0 - 50 ℃
• Storage: -40 - 85℃

Humidity (Non-condensing)

• Operating: 5 - 95%
• Storage: 5 - 95%

Physical Characteristic
Dimensions (WxD)

• 82 x 62mm

Weight

• 45g

Standards Compliance
Standards and Protocols

• IEEE 802.3ae: 10Gbps Ethernet
• IEEE 802.3x: Flow Control and Back Pressure
• IEEE 802.2ad: Link Aggregation
• IEEE 802.1Q VLAN support
• RFC2819 RMON MIB statistics

Certifications

• FCC, CE
