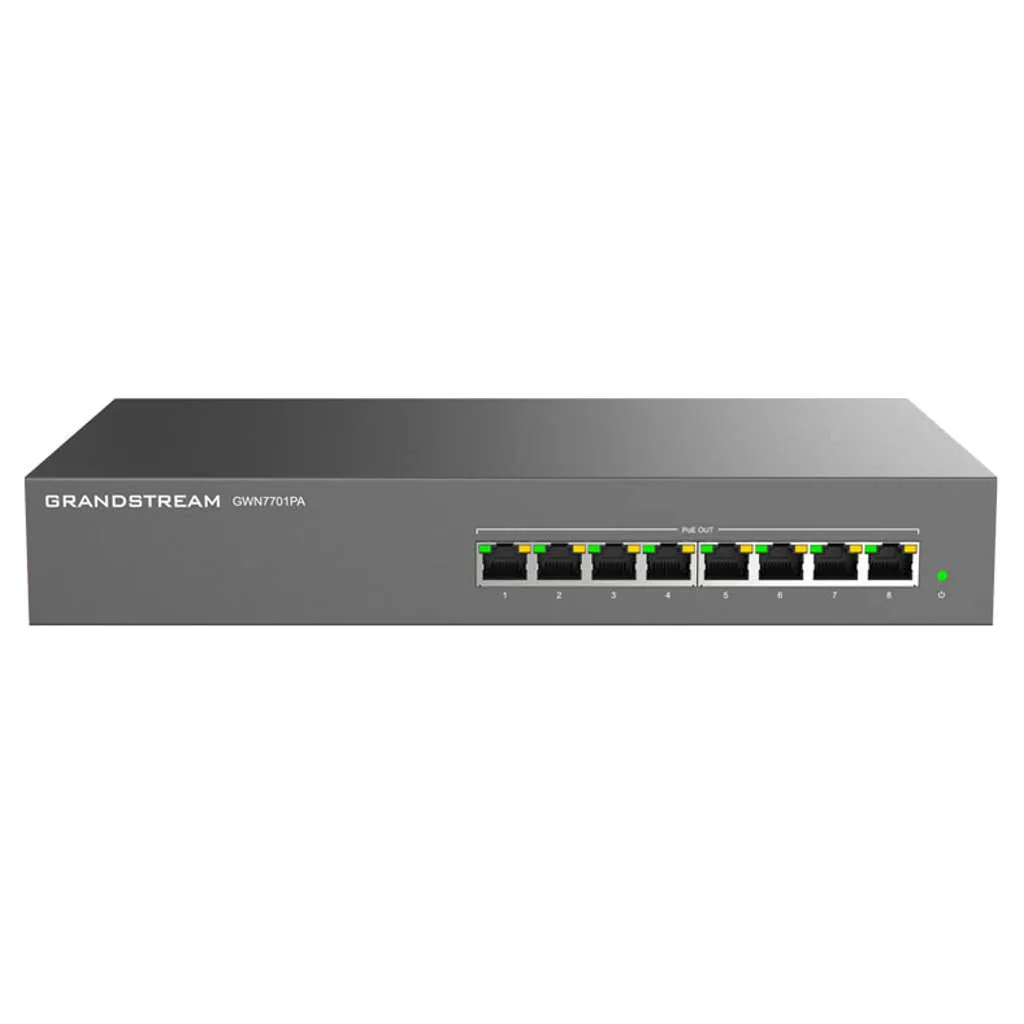

Name: Grandstream 8-Port Unmanaged Network PoE Switch GWN7701PA
SKU: 1222703

Product Details ＋

Product Description

The GWN7701PA series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses
It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables
Each port supports auto-negotiation to allow the GWN7701PA series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance
The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi
access points and other PoE endpoints
The plug-and-play GWN7701PA series are the ideal unmanaged network switches for home offices and small-to medium businesses

Product Specification

Brand	Grandstream
Product Type	Network Switch
Product Model	GWN7701PA
Gigabit Ports	8
PoE Ports	8
Enclosure	Metal
Mounting	Desktop/Rack-Mount
Network Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
PoE Standards	IEEE 802.3af, IEEE 802.3at
Port Feature	8× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX
Network Media	1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration	1~8 Ports 802.3 af/at compliant Up to 30 W on Each Port, Total 145W Power Budget; Overload to cut off the lowest-priority port Priority: Port 8 to Port 1
LED Indicators	Per port: Link/Activity - Green Per port: PoE output - Yellow Per device: Power Green
Mac Address Table	8K
Switching Capacity	16Gbps
Jumbo Frame	9KB
Advanced Features	Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS Unlink clear FDB Feature IGMP: IGMP Fast-Leave IGMP Snoop Route Port Autolearn Query Refresh Member Port
Power Adapter	Internal 100-240V AC, 50/60Hz,150W
Maximum Power Consumption By Base System	6.7W @220V/50Hz (excluding PoE output power)
Environmental	Operating Temperature: 0 to 40 °C (32 to 104 °F) Storage Temperature: -20 to 60 °C (-4 to 140 °F) Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing
Warranty	As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x W x H	36.6 x 21.1 x 5.3
Unit Of Measurement	1 Piece
Weight	2.100 kg
Generic Type	Switches
Manufacturer Details	Grand Stream Connecting The World 28, HAL 3rd stage, Indira Nagar, Bangalore - 560075 Email:[email protected]
Packer Details	Grand Stream Connecting The World 28, HAL 3rd stage, Indira Nagar, Bangalore - 560075 Email:[email protected]
Country Of Origin	India
