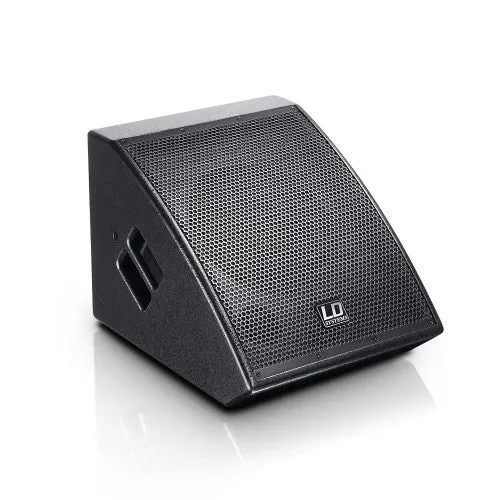

The LD Stinger MON101AG2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 121dB for versatile use on stage.
The 10" coaxial speaker with an integral 1" HF driver attains a dispersion angle of 75°x75°, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback. The active monitor is driven by a Class AB power amplifier with an output of 600W Peak. Short-circuit protection and a limiter ensure dependable operation.

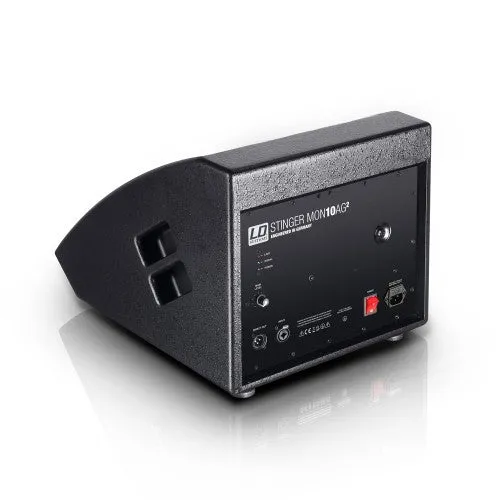

The rear connector panel offers an XLR-jack combo input and XLR output for looping through the signal; other features include a volume control, IEC power socket and switch, and LED indicators for power, signal, and limiter.

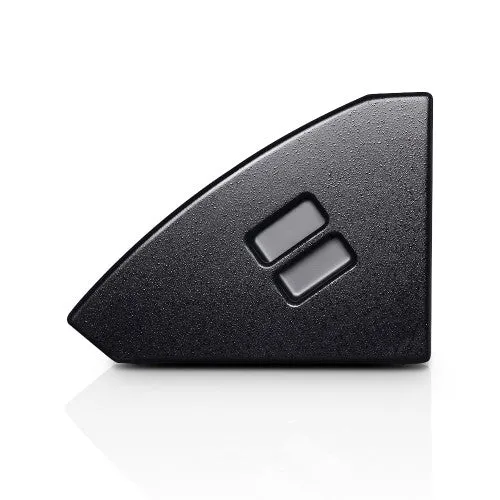

The elegant bass-reflex housing made of 15mm multiplex is finished with a durable coating and has ergonomically milled handles and a metal grille to protect the speaker. The monitor angle is 35°.
| Product type | PA loudspeaker |
| Type | Powered |
| Low/mid Woofer dimensions | 10 " |
| Woofer dimensions (mm) | 254 mm |
| Woofer type | coaxial loudspeaker |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Woofer voice coil | 2 " |
| Woofer voice coil (mm) | 50.8 mm |
| HF driver dimensions | 1 " |
| HF driver dimention (mm) | 25.4 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| HF driver voice coil | 1 " |
| HF driver voice coil | 25.4 mm |
| Amplifier | Class A/B |
| Dispersion (H x V) | 75 x 75 ° |
| System Power (RMS) | 150 W |
| Peak power | 600 W |
| Frequency response | 90 - 20000 |
| Crossover frequency | 3300 Hz |
| SPL (1W/1m) | 99 dB |
| Max. SPL (continuous) | 113 dB |
| Max. SPL (Peak) | 121 dB |
| Protection circuits | limiter, short circuit |
| Controls | On / Off, volume |
| Indicators | Limit, Power, Signal |
| Line Inputs | 1 |
| Line input connectors | 6.3 mm jack, XLR |
| Line Outputs | 1 |
| Line output connectors | XLR |
| Operating voltage | transformer |
| Operating voltage | 230 V AC / 50-60 Hz |
| Cabinet material | 15 mm Plywood |
| Cabinet construction | Bass Reflex |
| Monitor angle | 35 ° |
| Width | 380 mm |
| Depth | 335 mm |
| Height | 466 mm |
| Weight | 15,3 kg |
| Features | ergonomically shaped insert handles |
