Features:

• Six-phase power analyzer for developing frequency converters and lighting equipment
• Features the highest bandwidth on the market
• Measures voltage, current, and power harmonics up to the 40th harmonic
• Features a simple user interface to ensure easy, intuitive operation
• Offers a variety of standard configurations so users can choose the exact functionality required for their application
• Performs simultaneous parallel acquisition of all phases to allow accurate viewing of dynamic events on all phases at exactly the same point in time
• Compact design makes it easy to carry and saves working space
• Provides galvanically-isolated inputs to avoid short circuits in all applications
• Includes FFT analysis, vector diagram, and digital oscilloscope (DSO) mode in the base unit for complete analysis capability
• Offers user-selectable average time?from 15 ms up to 3600 s?for dynamic measurements
• Includes 4 MB on-board memory (expandable to 128 MB) for storing measured values
• t for complete analysis capability
• Offers user-selectable average time (from 15ms up to 3600s) for dynamic measurements

Applications:

• Electric motors and inverter drive systems
• Inverter drive system
• Lighting systems
• Transformers
• Automotive

Specifications:

• Number of Phases: 1 to 6
• On-Board Printer: No
• Display: Color: 144 mm (5.7"), 320 x 240 px, User-selectable background lighting and contrast
• Bandwidth: DC to 3 MHz or DC to 10 MHz depending on input module
• Basic Accuracy: 0.2%, 0.1% or 0.03% depending on input modules
• Sampling Rate: 0.33 MHz or 1 MHz depending on input modules
• Voltage Input Range: 0.3 to 1000V

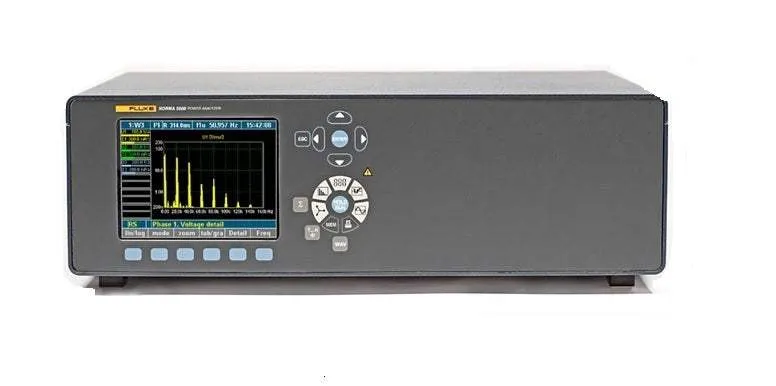

High precision power analyzer with rugged design ideal for use in the field or as a bench unit in laboratories and on test benches. This instrument is reliable and highly accurate in measuring of power electronics for test and development.
