Features:

• High Performance Receiver Supports Data Rates up to 12.5 Gb/s
• User-installable Modules for Clock Recovery at 10.664 Gb/s and 9.953 Gb/s
• Broad Wavelength from 1100 to 1620 nm
• High Sensitivity (-16 dBm) to Detect Low-level Optical Input Signals
• Amplified Electrical Output to Connect Directly to Most Commercial Error Analyzers

Applications:

• Bit Error Rate Testing
• Optical Receiver and Transmitter Testing
• Optical Component and Fiber Loop Testing
• Optical Signal Analysis
• Remote Operation for System Integration

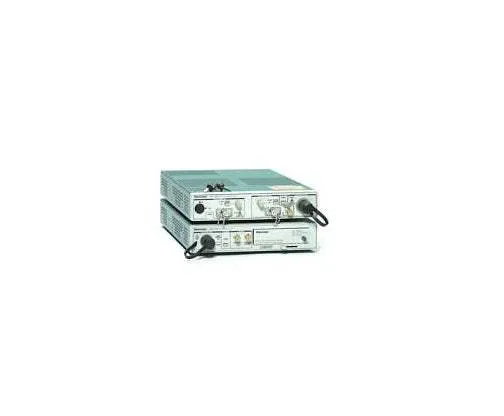

The Tektronix high-performance OI1125 E/O transmitter and OI2125 O/E receiver offer a simple and cost-effective solution for generating and receiving SONET/SDH compliant optical signals for bit error rate (BER) testing and optical signal analysis up to 12.5 Gb/s. Both include a remote port for easy integration and remote monitoring and control in a test system environment. Users can completely control instrument settings, monitor instrument status and access additional features through the remote port.
