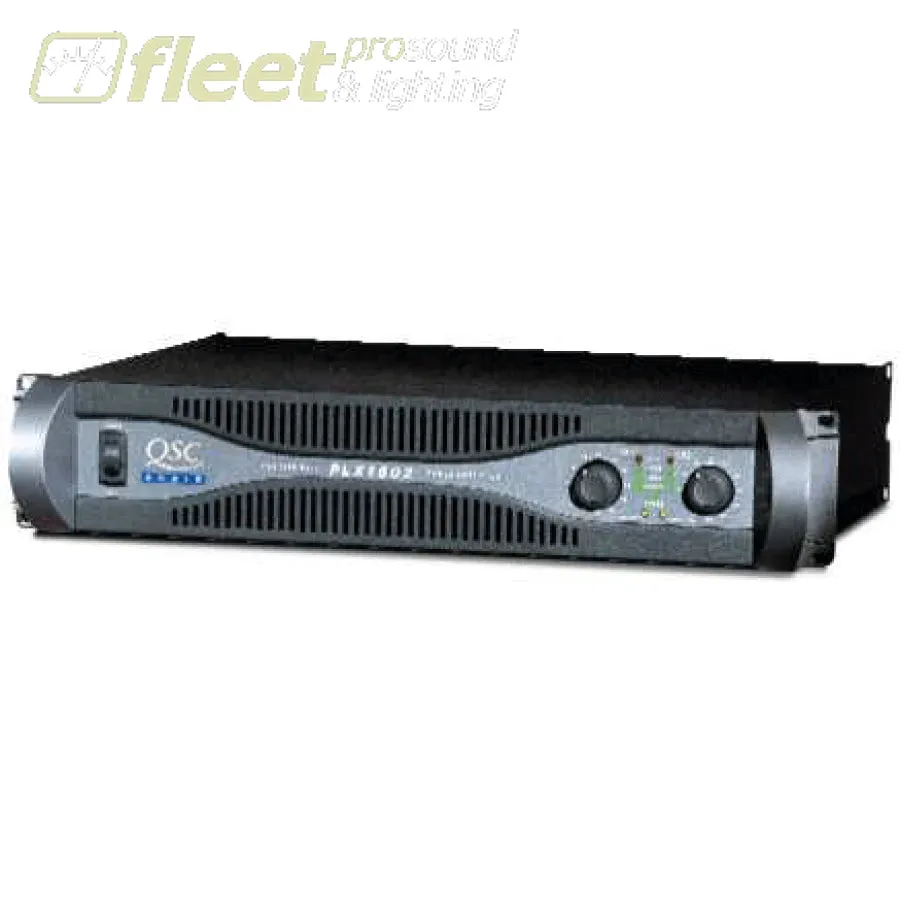

Name: Qsc Plx1602 Power Amplifier-USED
SKU: 1957179

Product Details ＋

FEATURES:

Exclusive PowerWave power supply for superior bass and lighter weight

Ultra-low distortion (0.03% THD at 8 ohms) & studio-quality noise floor (-107 dB)

LED indicators include bridge mono and parallel input modes

Compact 2 RU, 21 lbs. and 13" deep chassis fits into any rack

Selectable clip limiters and subsonic filters reduce distortion and protect speakers

Variable-speed fan for low noise and solid 2 ohm performance

Both 1/4" TRS & XLR inputs, Speakonª and shock-proof binding post outputs

3-year warranty plus optional 3-year extension available

SPECIFICATIONS:

WATTS STEREO MODE

8 ohms 20 Hz-20kHz 0.03%THD-300W

4 ohms 20 Hz-20kHz 0.05%THD-500W

2 ohms 1kHz 1%THD-800W

BRIDGE MONO MODE

4 ohms 1kHz 1%THD-1600W

Distortion (SMPTE-IM) Less than 0.01%

Distortion (typical) 20 Hz-20 KHz: 10 dB below rated power 1.0 kHz and below: full rated power Less than 0.01% THD

Frequency Response 20 Hz-20 kHz, ± 0.2 dB/8 Hz-50 kHz, 0, -3 dB

Damping Factor greater than 500 Input Impedance 6 K ohms unbalanced, 12 K ohms balanced Input Clipping 10 Vrms ( 22dB) Cooling Variable-speed fan, rear-to-front air flow Connectors (each channel) Input: 3-pin XLR and 1/4" TRS balanced Output: Neutrik Speakon and touch-proof binding posts Amplifier Protection Full short circuit, open circuit, thermal, ultrasonic, & protection. Stable into reactive or mismatched loads. Load Protection On/off muting, DC-fault power supply shutdown Dimensions 19" (48.3cm) rack mounting, 3.5" (8.9 cm) tall (2 rack spaces), 13.25" (33.7 cm) deep (from front mounting rails) Gain 40x (32 dB) Weight 21 lb (9.5 kg) net
