Features:
350 MHz, Bench, 16 CH Mixed Signal, Digital, FULLY LOADED, Oscilloscope, 250 Mpts Memory, 5 GS/s Sample Rate, 10.1 inch Touch Screen Color Display
- 4 Channel / 350 MHz Bandwidth
- Standard serial bus triggering and decoding, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S.
- Decode only for MIL-STD-1553B, SENT and Manchester (use standard oscilloscope trigger functionality)
- Long Capture - 125 Mpts/Ch and 250 Mpts interleaved.
- Math and Measure - 9 basic math functions plus FFT, and 50 automatic measurement parameters
- Connectivity - USB for mass storage, printing
- Waveform Sequence Recorder - record and play back up to 100,000 waveforms
- Includes Bode Plot and Power Analysis applications as standard
- Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Measurement and Waveform Histograms, Bode plot and Power Analysis

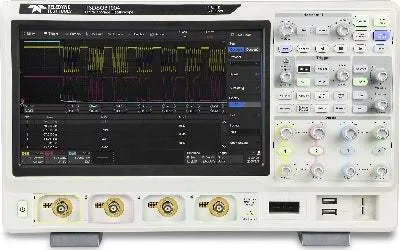

Teledyne Test Tools new T3DSO3000 Oscilloscopes feature four channel models with analog bandwidth options from 200 MHz to 1 GHz. Each model offers a maximum sample rate of 5 GSa/s, and a maximum memory depth of 250 Mpts in half channel mode. All models incorporate two 5 GSa/s ADCs and two 250 Mpts memory modules. When all channels are enabled, each channel has sample rate of 2.5 GSa/s and a standard record length of 125 Mpts. When only a single channel per ADC is active, the maximum sample rate is 5 GSa/s and the maximum record length is 250 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.
