TRAMEX ROOF MASTER KIT

The Roof Master Kit is the complete kit for the Roofing Professional, allowing for continuous and point-of-contact, non-destructive surveying of moisture conditions in roofing and waterproofing systems, per ASTM D7954, up to 6 inches in depth, as well as non-destructive measurement of moisture conditions in concrete decks, measurement of moisture conditions in wood decks, and ambient relative humidity and dew point conditions. This kit comes in a protective heavy-duty wheeled carry case with die-cut foam lining.

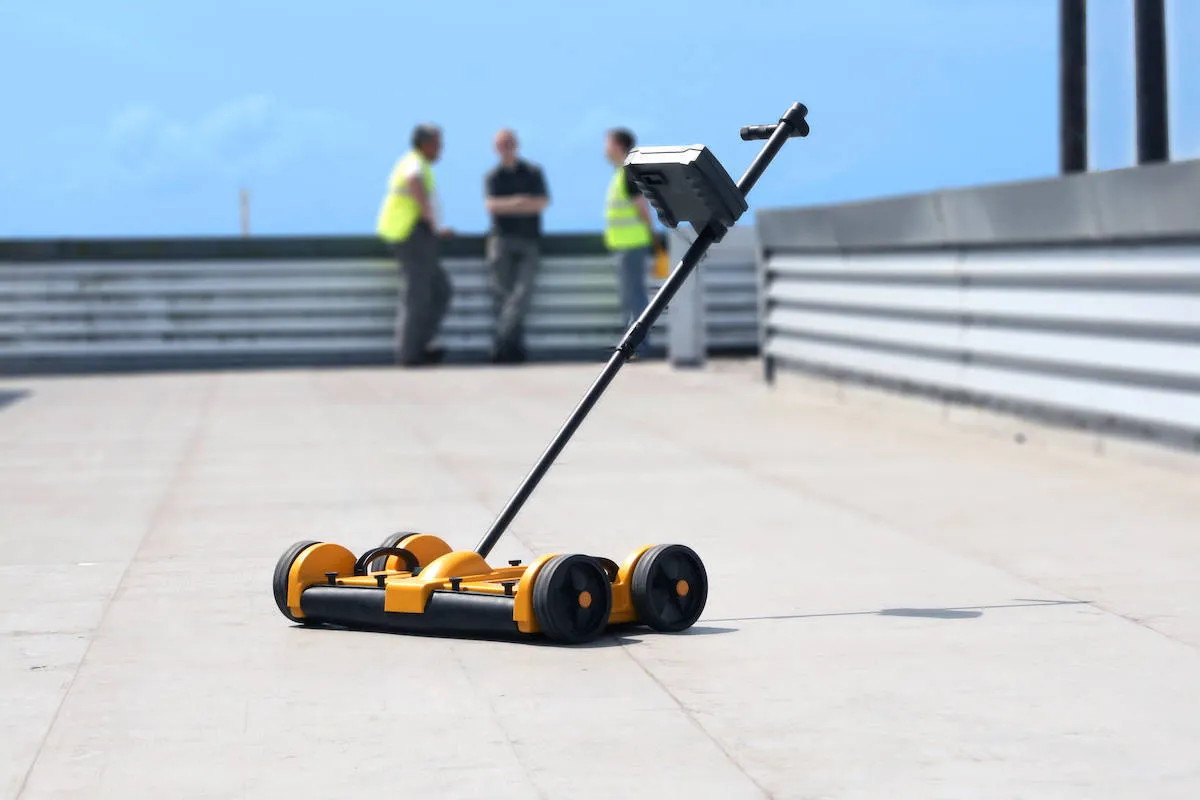

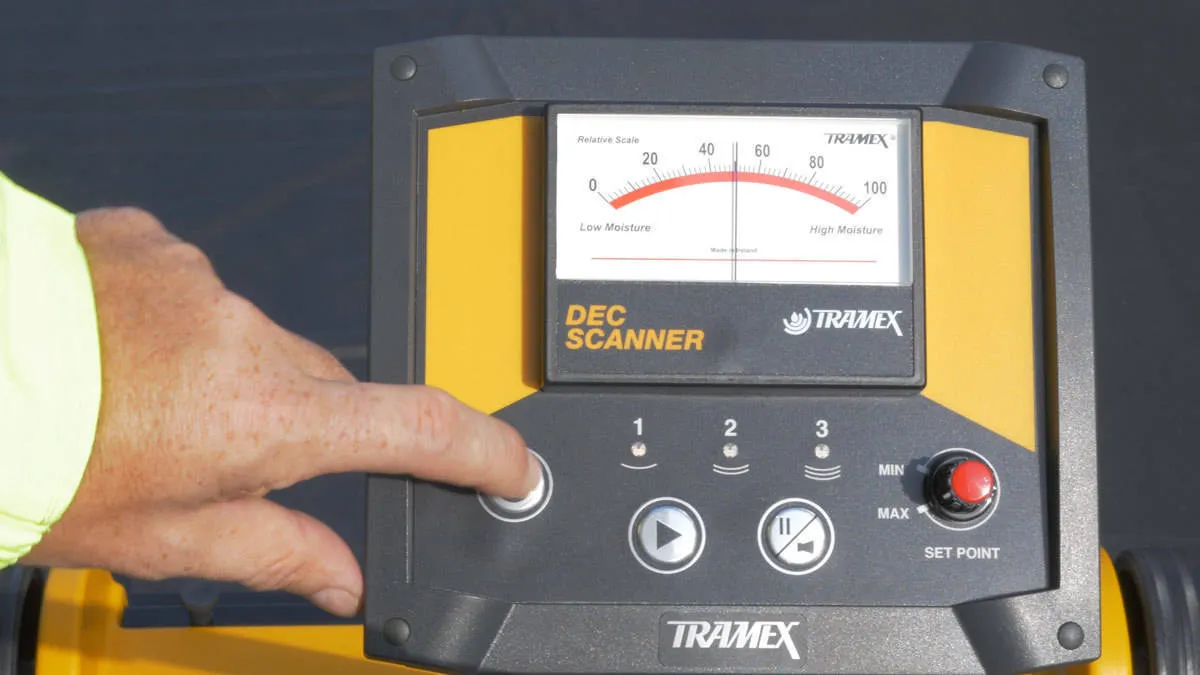

Features of the Dec Scanner:

• Three ranges of sensitivity enabling the inspection of a variety of roof membranes and insulation thicknesses.
• Ergonomic, easy-reach and easy to operate control panel.
• Leak tracing, problem sourcing and an instantaneous and clear indication of roof condition.
• Fast and accurate readings over large roof areas in a short time frame.
• Faster and more user friendly than nuclear meters

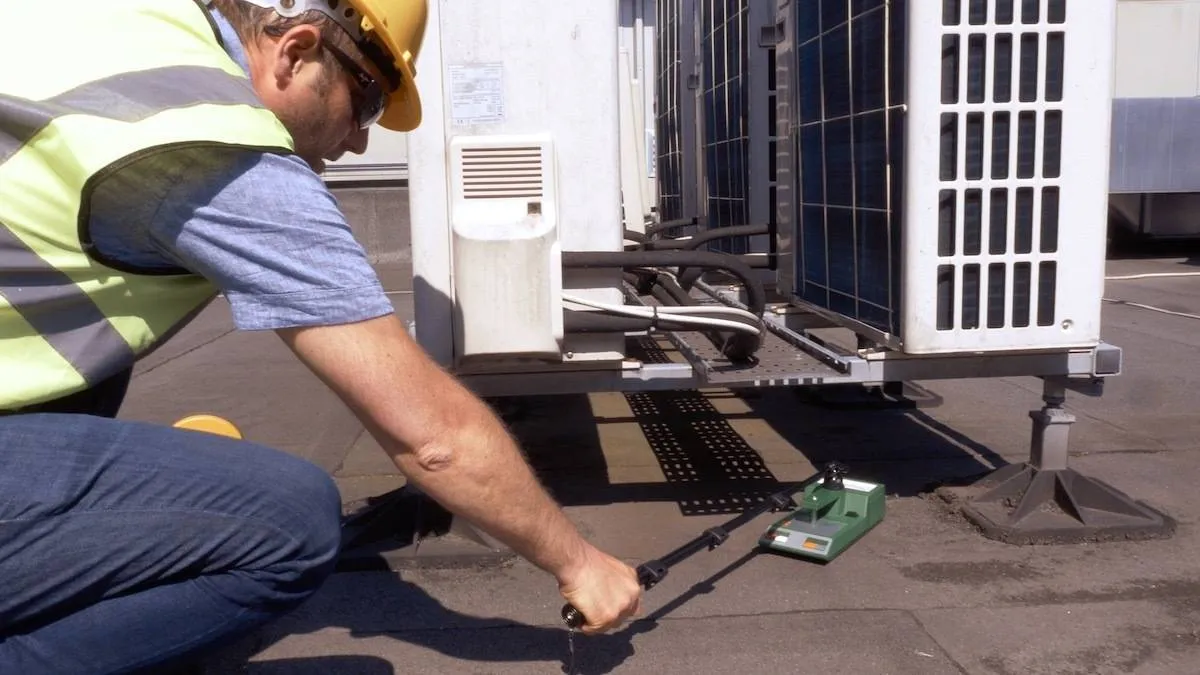

Features of the RWS:

• For non-destructive moisture evaluation of Roofs, EIFS, foam insulation systems & other building envelope applications.
• To evaluate the extent of the moisture problem and help trace and pin-point its source.
• Multi-mode functions allowing for depth penetration and sensitivity selection.
• Fast and easy to operate giving instant clear readings.

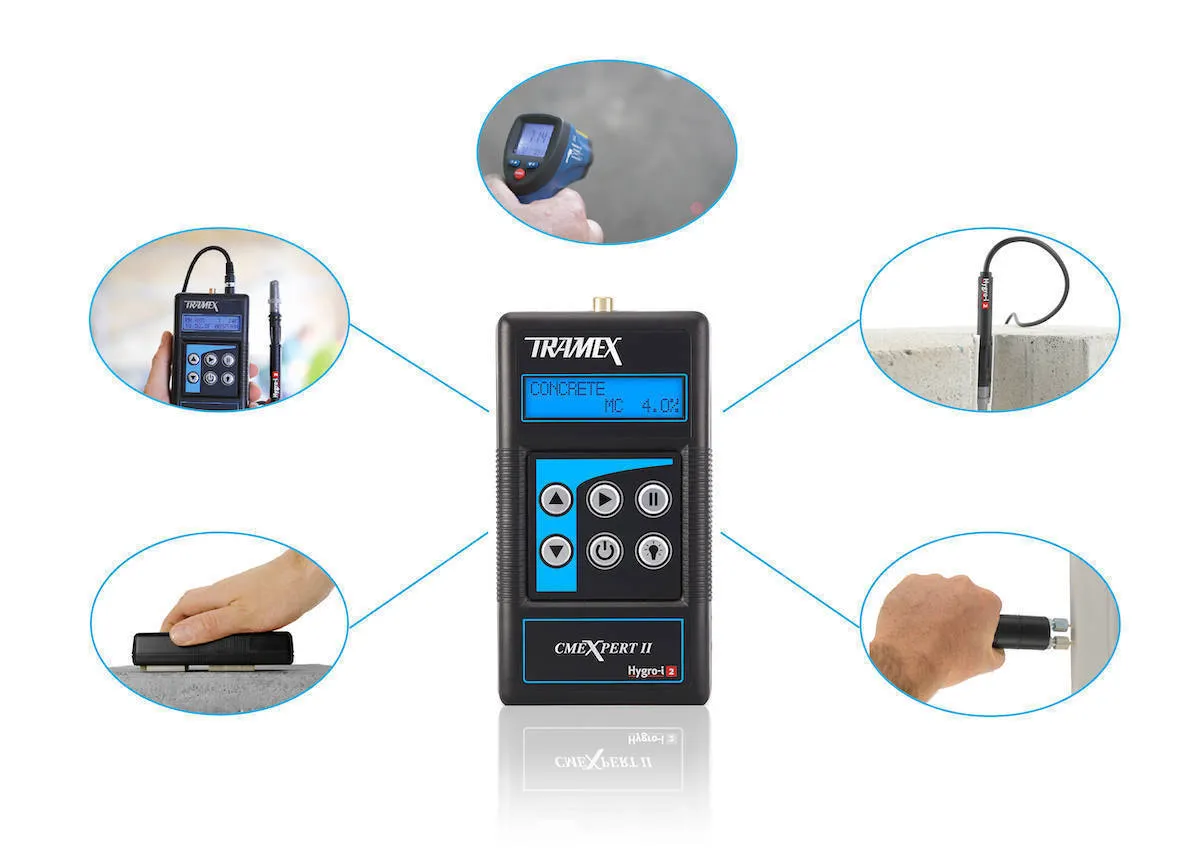

Features of the CMEX II:

• Measures up to 6.9% Moisture Content in Concrete.
• Carbide Method (CM) equivalent scale for concrete.
• Large clear backlit digital display. Hold function “freezes” meter reading when inspecting areas where the meter face is not visible.
• Attaches to a relative humidity Hygro-i2 ® probe for in situ testing of concrete and ambient conditions.
• 7% to 40% Moisture Content measurement in Wood using Pin-type probe attachment. 7 inch Pin probe for deep penetration.

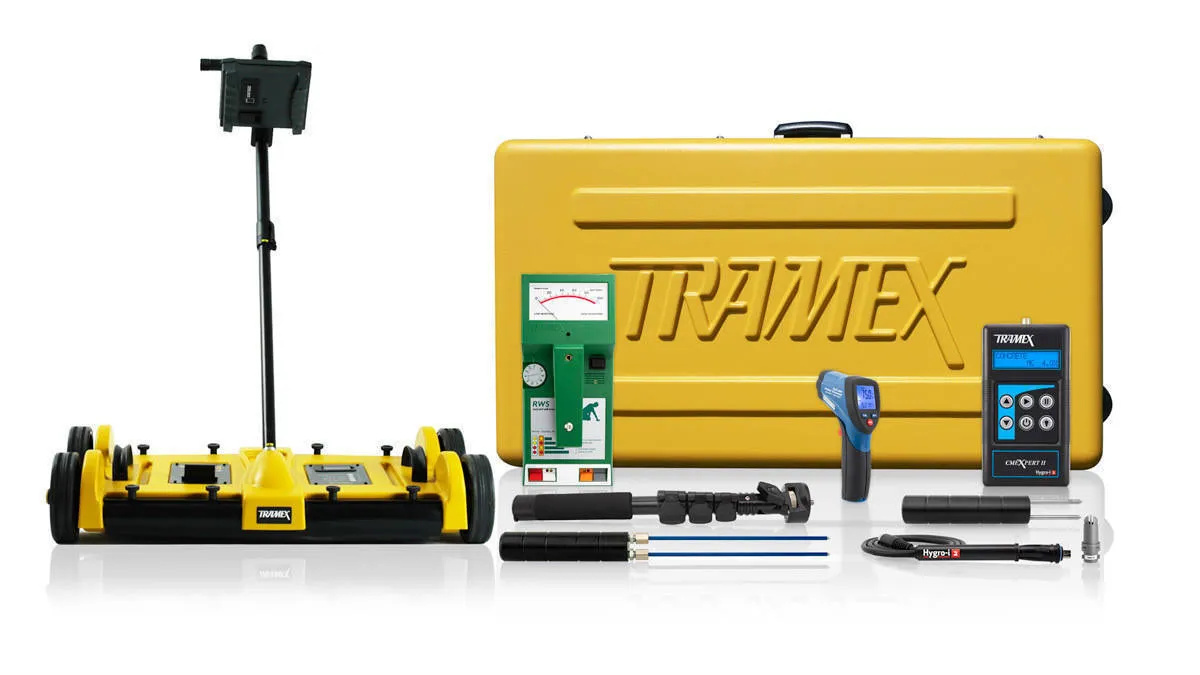

Kits Include:

• Dec Scanner
• RWS - Roof and Wall Scanner telescopic handle (for use on roofs).
• CMEX II - concrete moisture meter.
• 1 x Hygro-i2 ® probe.
• Hand held electrode with 7" insulated pins.
• Hole Punch.
• Infrared thermometer

Specification

• Size: 1045mm x 535mm x 305mm (41.2" x  21.1" x 12")
• Weight: 27kg (59.5lbs)
• Power: 5 x 9 volt PP3 Batteries (included)

Measuring range - RWS:

• Depth of penetration: 100mm (4")
• Reference scale: (NDT*) 0 to 100

Measuring range Dec Scanner:

• Depth of penetration: 152mm (6")
• Reference scale: (NDT*) 0 to 100

Measuring range of CMEX II:

• Depth of penetration in concrete: (NDT*) approx. 20 mm (3/4")
• Moisture content for Concrete: (NDT*) 0 to 6.9%
• Carbide Method Equivalent for concrete (NDT*) 0 to 4.3
• Reference scale: (NDT*) 0 to 100
• Moisture Content in wood using Pin Probe: 7 to 40%
• Relative Humidity (with Hygro-i2 ® probe): 0 to 99%
• Humidity accuracy: 0% to 99%RH /- 2% @ 25°C / 77°F
