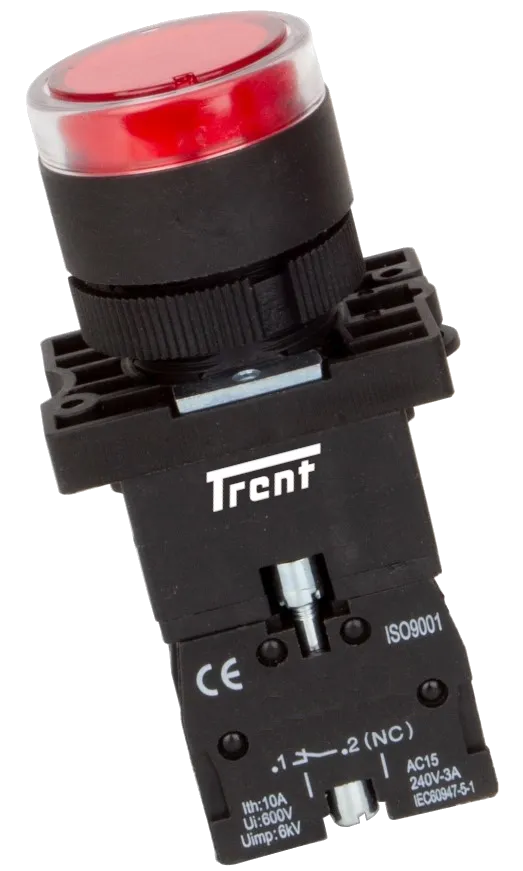

TRIB-22D-R-24-NC, 22mm LED Pushbutton & Indicator RED 24AC/DC, NORMALLY CLOSED, Plastic, IEC60947-5-1
Pushbutton Indicator Switches are a combinations of LED indicator Series and Momentary Pushbutton Switches. LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user.
Features :
- 240VAC or 24AC/DC (400VAC Special Orders)
- 1 Pole Momentary
- LED Illumination
- Rated for 6 Amp @ 240VAC, or 0.3 Amp @ 240VDC
-

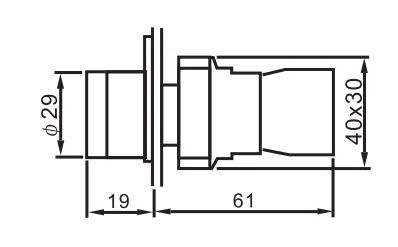

Ø 22.5mm Cutout
Standards :
- IP40
- IEC60947-5-1
- CE
Specification
| TRENT Part Number | TRIB-22D-R-24-NC |
| Functions | Momentary (Normally Closed) |
| Nominal Voltage | 24AC/DC @ 50/60Hz |
| Impulse Voltage Wear Resistance | 6kV |
| Illumination Type | RED LED |
| Short Circuit Protection (Fuse) | Recommend 10A gG Fuse |
| Nominal Current Range AC | 6 Amp @240VAC |
| Nominal Current Range DC | 0.3 Amp @ 240VDC |
| Mechanical Compression Force at Closing | 20N |
| Mechanical Compression Force at Closing | 8N |
| Humidity | 35-85% |
| Approvals | CE |
| Standards | IP40, IEC60947-5-1 |
| Weight | |
| Enclosure Material | UL94V0 |
| Factory Pack Qty | 1 |
| TRENT(Fastron) Head Office | Australia |
